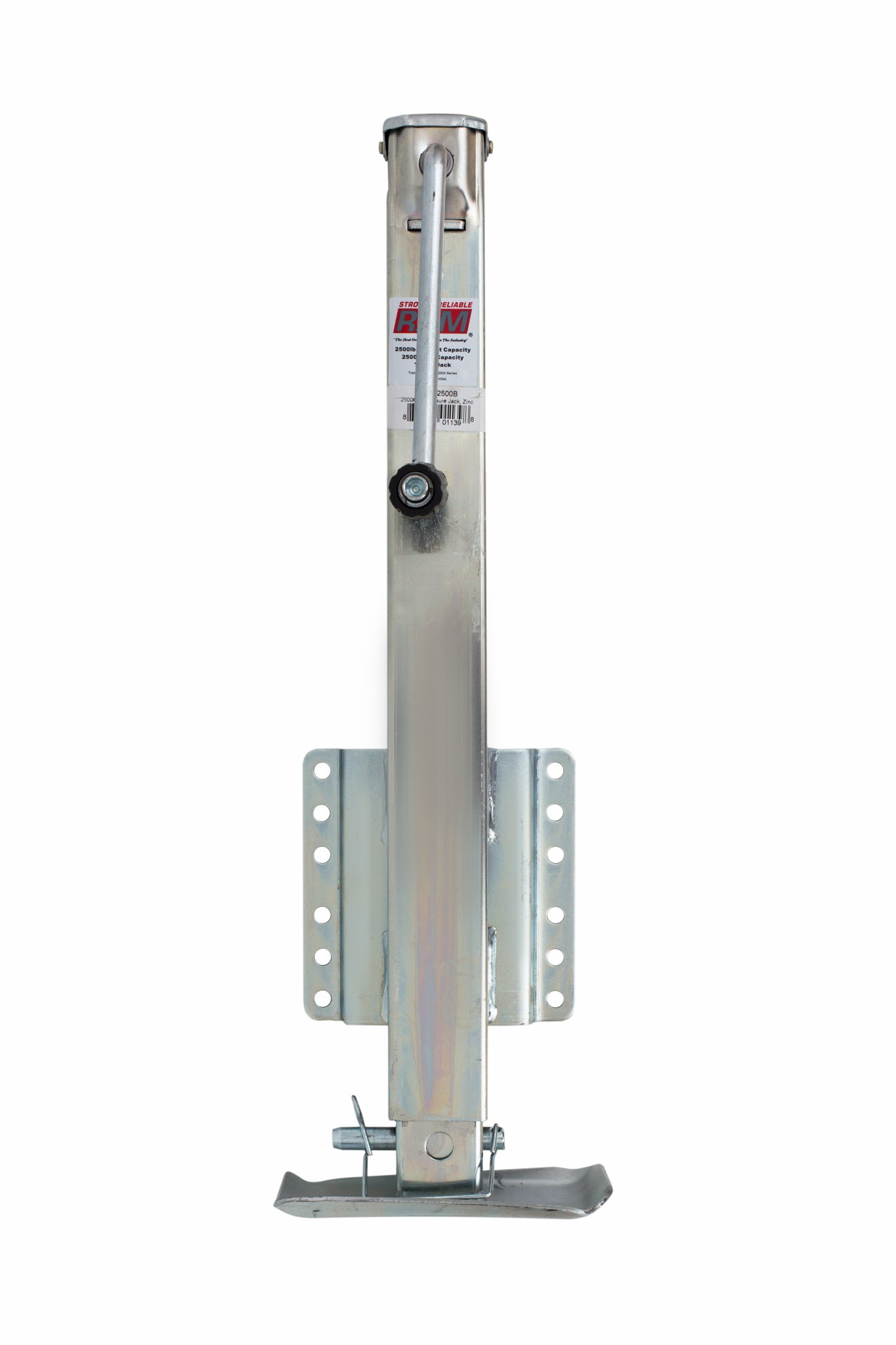

Square Jack w/ Footplate - Drop Leg - Bolt On - Zinc - Sidewind - 29-1/8" Lift - 2.5K

Rust-resistant jack is great for marine use. Square design offers superior side-load support. Retracted height is 7-1/4". Extended height is 22-5/8". Screw travel is 15-3/8". Drop leg offers an extra 13-3/4" of lift.

Features:

• Marine jack lets you raise and lower your boat or recreational trailer
• Footplate minimizes sinking in soft ground
• Sidewind handle has comfortable, grooved grip
• Corrosion-resistant clear zinc finish for durability
  • 100-Hour salt spray rating
• Effortless greasing with built-in grease zerk
• Bolt-on installation to the side of your trailer
  • Mounting bracket is included

Specs:

• Application: trailers with a frame height from 2" to 5"
  • Trailer frame width must be no greater than 3"
• Bracket height (from bottom of footplate to center of bracket):
  • 7-1/4" Retracted
  • 22-5/8" Extended
• Total lift: 29-1/8"
  • Screw travel: 15-3/8"
  • Drop leg travel: 13-3/4"
• Lift capacity: 2,500 lbs
• Clearance: 17-1/2" from center of bracket to top of jack
• Outer tube width: 2-1/4"
• Inner tube width: 2"
• Footplate dimensions: 7-1/2" long x 3-3/4" wide
• Mounting bracket dimensions: 6-1/2" long x 6-1/2" wide
• Handle radius: 7-7/8"
• Adjustment hole spacing on drop leg: 3-3/8" from center of hole to center of hole
  • 3-1/2" Between center of hole on bottom and center of nearest hole
• 1-Year warranty
